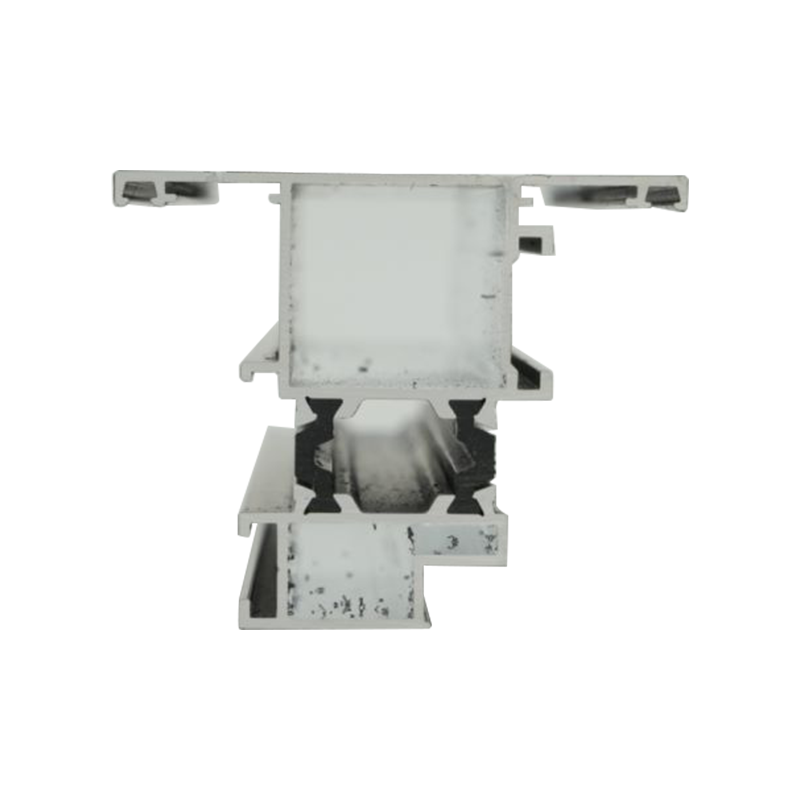

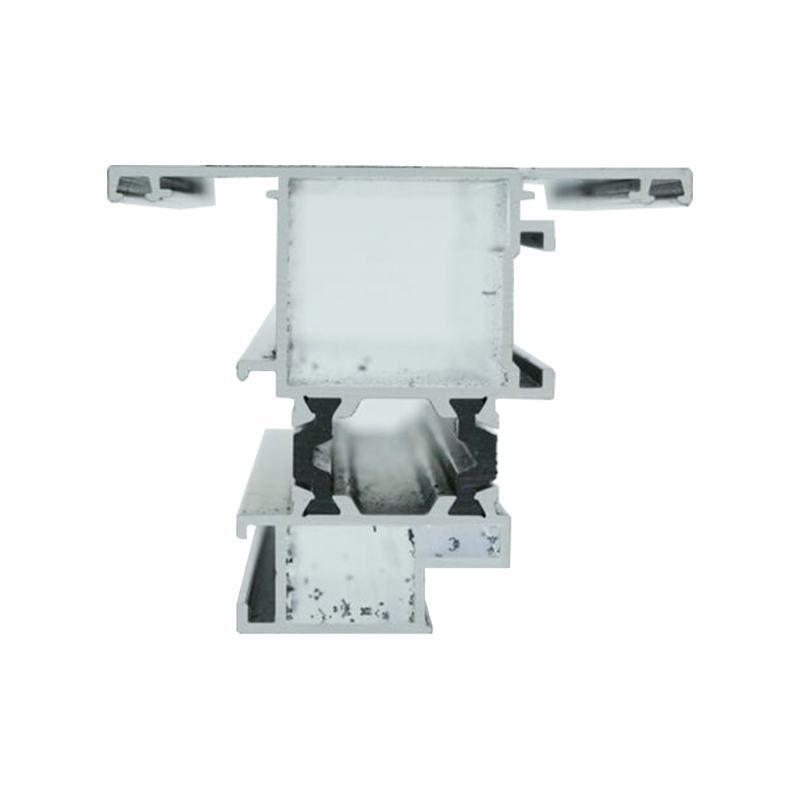

The surface of lightweight casement window aluminum profiles adopts advanced electrophoretic coating or anodizing treatment technology, with rich and diverse colors. It not only retains the natural texture of the metal but also effectively prevents ultraviolet erosion oxidation and fading, making it last forever. The unique broken bridge insulation design effectively blocks heat transfer between indoors and outdoors, significantly improves the thermal insulation performance of doors and windows, and creates a comfortable environment for residents that is warm in winter and cool in summer. Functionally, this lightweight casement window aluminum profile supports a variety of opening methods such as inward opening, outward opening, and top suspension to meet the ventilation needs of different scenarios. Coupled with the sophisticated hardware accessories system, the window sash opens smoothly and silently and has a sealing performance, which effectively isolates external noise and dust, creating a quiet and clean indoor space. In terms of safety performance, we use high-strength alloy materials, combined with reinforced rib structural design, which greatly improves the load-bearing capacity and deformation resistance of the window frame. It is also equipped with safety devices such as anti-fall ropes and anti-theft lock points to ensure home safety in all aspects.
Years Industry Experience
Factory Area
Current Staff
Annual Output
19 Dec,2024
12 Dec,2024
05 Dec,2024
29 Nov,2024
05 Nov,2024
05 Nov,2024
The surface treatment of lightweight casement window architectural aluminum profiles mainly includes several mainstream technologies such as anodizing, electrophoretic coating, porcelain coating and fluorocarbon spraying. Each process has its unique advantages and applicable scenarios, which can significantly improve the overall performance of aluminum materials.
1. Anodizing
Anodizing is a treatment technology that uses electrochemical methods to form a dense aluminum oxide film on the surface of aluminum materials. This oxide film has high hardness, good wear resistance, and good corrosion resistance and insulation. The surface of anodized aluminum exhibits the natural luster of metal and has a delicate texture. It can effectively resist ultraviolet erosion, prevent oxidation and fading, and maintain long-term bright colors.
2. Electrophoretic coating
Electrophoretic coating is a method that uses the action of an electric field to directionally migrate charged paint particles to the surface of aluminum materials and deposit them to form a coating film. This process can give aluminum materials a rich range of color options, while the coating film is uniform, strong adhesion, and has excellent corrosion resistance, weather resistance, and wear resistance. Electrophoretic coating can also effectively isolate the aluminum material from direct contact with the external environment, further extending the service life of the product.
3. Porcelain swimming
Porcelain coating is a new type of aluminum surface treatment process. Its principle is similar to electrophoretic coating, but the coating used is porcelain coating. The surface of the aluminum material after porcelain bathing treatment presents a texture similar to ceramics, with high gloss, delicate touch, and excellent weather resistance, corrosion resistance and wear resistance. In addition, the porcelain swimming process can effectively reduce fingerprint residue and keep the aluminum surface clean and beautiful.
4. Fluorocarbon spraying
Fluorocarbon spraying is a spraying technology that uses fluorocarbon resin as the main film-forming substance. Fluorocarbon coatings have extremely high weather resistance, corrosion resistance and chemical resistance, and can maintain the integrity and beauty of aluminum surfaces in extremely harsh environments. At the same time, fluorocarbon spraying can also give aluminum materials rich colors and textures to meet the diverse needs of architectural design.
Effect of treatment process on aluminum properties
1. Corrosion resistance
The above four surface treatment processes can all form a dense protective film on the surface of the aluminum material, effectively isolating the direct contact between the aluminum material and the external environment, thereby significantly improving the corrosion resistance of the aluminum material. Among them, the oxide film and coating film formed by anodizing and electrophoretic coating have excellent chemical stability and can resist the erosion of various corrosive media; porcelain coating and fluorocarbon spraying further improve their performance through their unique coating composition and process characteristics. Enhanced corrosion resistance of aluminum.
2. Wear resistance
The aluminum oxide film formed by anodizing has high hardness and good wear resistance, and can effectively resist scratches and wear; the coating film formed by electrophoretic coating and porcelain coating also has excellent wear resistance and can keep the aluminum surface smooth and smooth. Smooth; fluorocarbon spraying further improves the wear resistance of aluminum through its high-hardness coating.
3. Aesthetics
Surface treatment technology not only improves the performance of aluminum, but also gives it rich colors and textures. Anodizing retains the natural metallic luster of aluminum, electrophoretic coating and porcelain coating provide a variety of color choices, and fluorocarbon spraying can simulate various natural textures such as imitation wood grain and imitation stone to meet the diverse needs of architectural designs. needs.
As an enterprise with a profound heritage in the field of aluminum profile design and manufacturing, we have the following significant advantages and technical strength:
Advanced and complete top-notch testing equipment: We are equipped with advanced testing equipment such as film thickness and paint film testers, metallographic microscopes, Vickers hardness testers, flatness testing platforms, three-dimensional coordinate measuring machines, and image measuring machines to ensure that every process is product quality, providing customers with high-precision final products.
Professional design team: We have a team specializing in aluminum profile design, and we continue to improve our design and manufacturing capabilities based on self-developed technology. Many experienced technicians in the team focus on the research of high-strength aluminum profiles, aluminum door and window profiles, curtain walls and industrial profiles to ensure that the products reach the highest level in the industry in terms of air tightness, strength, anti-leakage, and wind pressure resistance. .
Strict quality control: We insist on conducting corresponding testing after each process. For the final product, we will conduct 99.99% full inspection according to customer requirements and international standards to ensure that product quality meets international standards and customer expectations.
Diversified surface treatment processes: We are proficient in various surface treatment processes such as anodizing, electrophoretic coating, porcelain coating and fluorocarbon spraying, and can provide customized surface treatment solutions according to customer needs and product design requirements.
